How to configure Y486AP network using WPS MODE

Supported model list: Y486AP

1. Connect the machine to the power supply and turn it on.

2. Ensure that your router is turned on and supports the WPS setup feature.

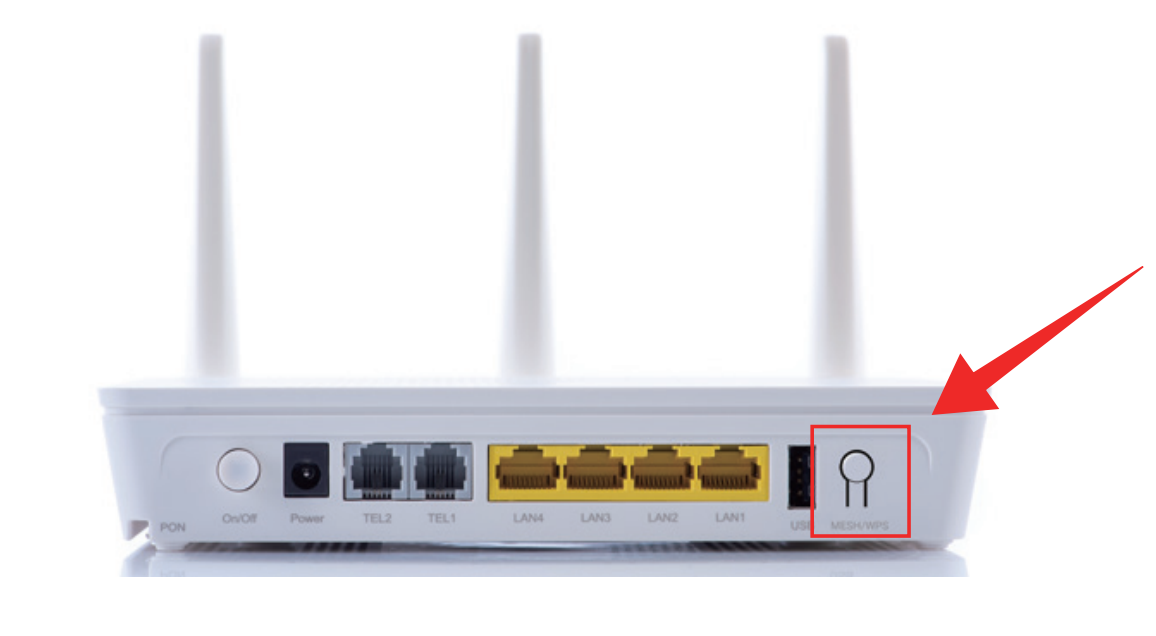

3. Locate the WPS button on your router (sometimes labeled as the quick setup button) and briefly press it to enable WPS mode. The router's indicator light will flash rapidly during this process.

Note: Not all routers support WPS configuration. Some devices may require additional setup steps when using WPS to connect.

4. Press and hold the status light button on the printer and release it after hearing four consecutive "beep" sounds to put the device into WPS pairing mode.

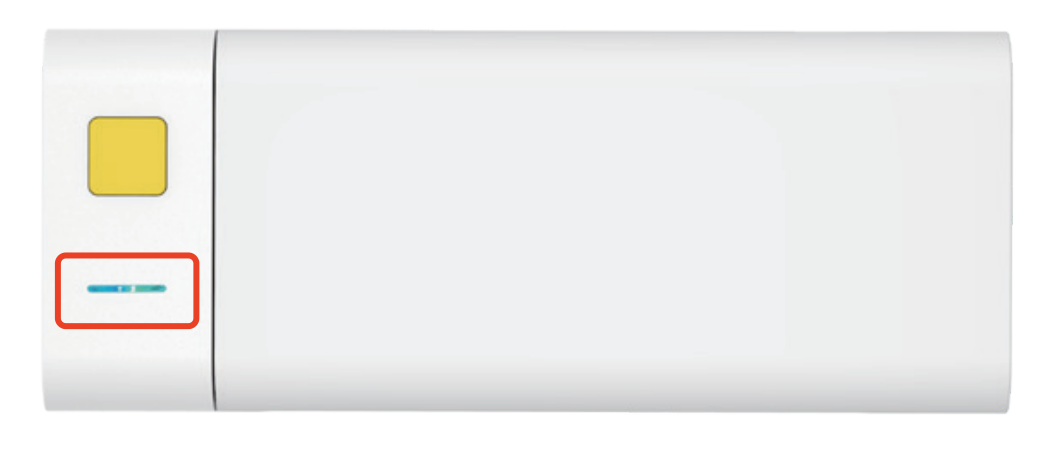

5. The device will automatically search for and connect to the WPS signal emitted by the router. At this time, the green status indicator light on the top of the device will be flashing.

6. When the status indicator light turns into a steady blue light, it means that the device has successfully connected to the network.

7. After the network configuration is successful, you can start printing images or files.
